36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ex. vat.
16.515,00 DKK ex. vat.
Select variation
Delivery
Delivery is calculated at checkout
ND 7013 3+0 59B15 SX 02 .. .. .. 01

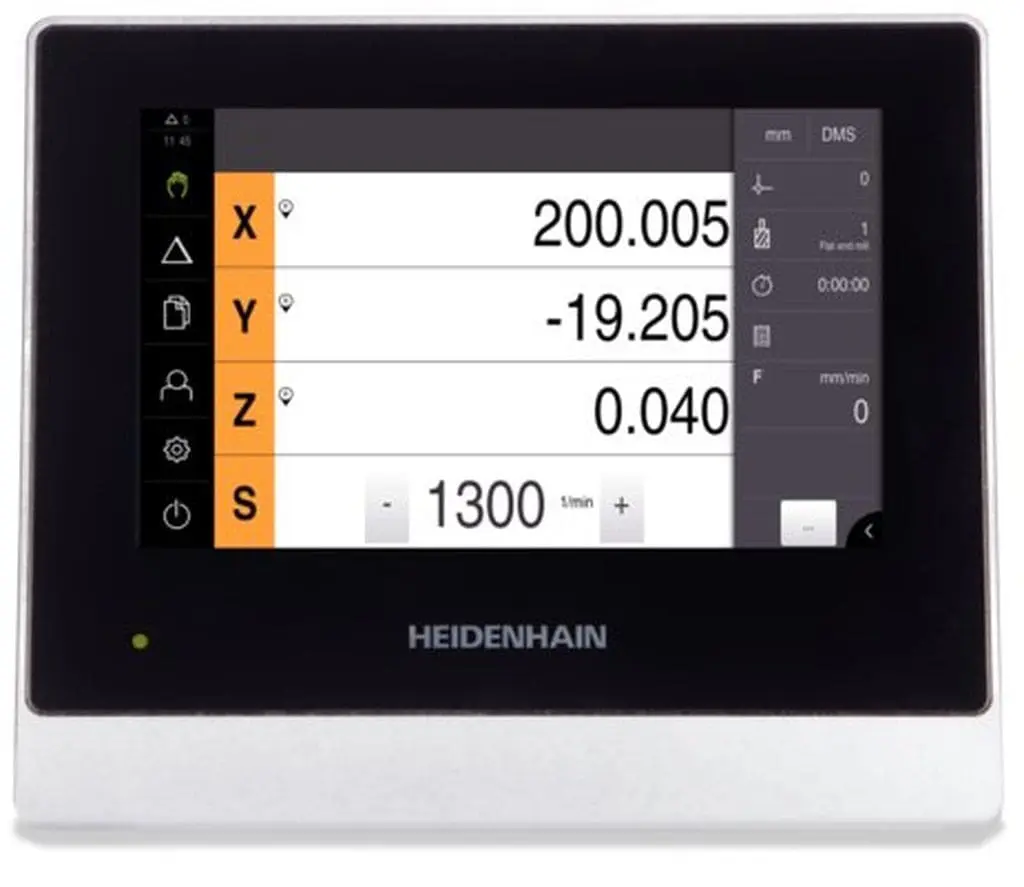

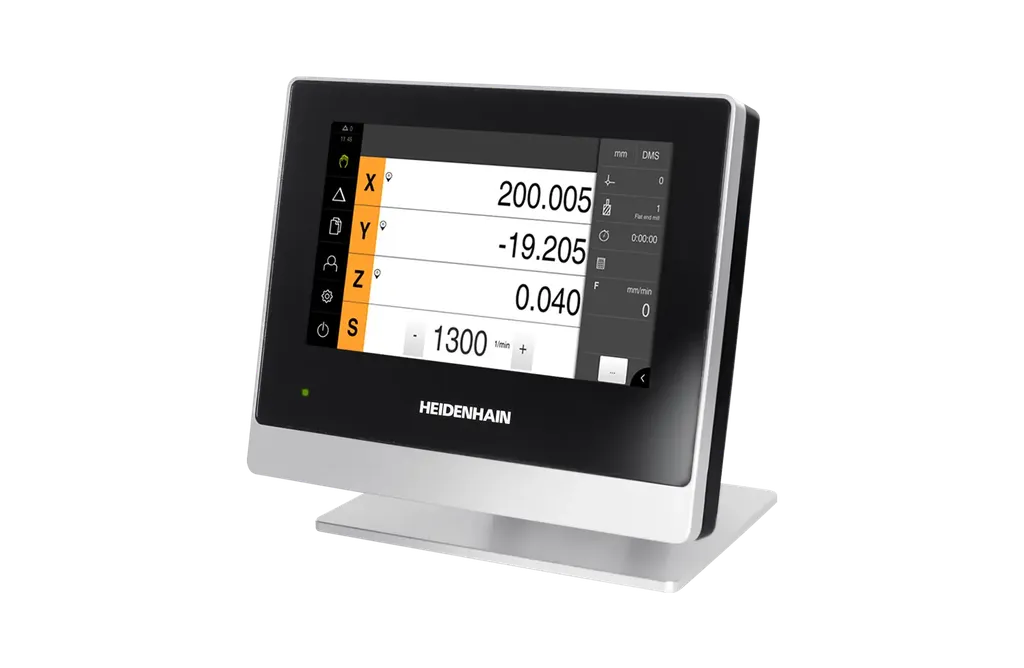

Digital readout for manual operated machine tools
Application: milling/turning
Display: 7-inch, color, wide screen (15:9), resolution 800 x 480
Number of encoder inputs: 3
Encoder interface: EnDat 2.2 / 1 Vpp / 11µAss
Encoder connection: Built-in D-sub connector without housing, 2-row, female, 15-pin
Switching function: available
USB interface(s): 1 x USB 2.0 Hi-Speed (Type A), maximum current 500 mA
Network interface(s): 1 x Ethernet 10/100 Mbit/1 Gbit
Fastening type: 50 mm x 50 mm, 4 x M4
Application software: Manually operated machine tool
Software options: optional expandable (depending on the software version)
Payment options
Manufacturer
ND 7013 3+0 59B15 SX 02 .. .. .. 01
Digital readout for manual operated machine tools
Application: milling/turning
Display: 7-inch, color, wide screen (15:9), resolution 800 x 480
Number of encoder inputs: 3
Encoder interface: EnDat 2.2 / 1 Vpp / 11µAss
Encoder connection: Built-in D-sub connector without housing, 2-row, female, 15-pin
Switching function: available
USB interface(s): 1 x USB 2.0 Hi-Speed (Type A), maximum current 500 mA
Network interface(s): 1 x Ethernet 10/100 Mbit/1 Gbit
Fastening type: 50 mm x 50 mm, 4 x M4
Application software: Manually operated machine tool
Software options: optional expandable (depending on the software version)
| Weight | 2425 g |
|---|---|
| Interface | 1 Vpp |
| Voltage | |
| Number of axes | 3 axes |
Technical information
