LS 406C 920 5.0 C001 .. B 41S08 .. 0.00 ~11µApp 66 01 ..

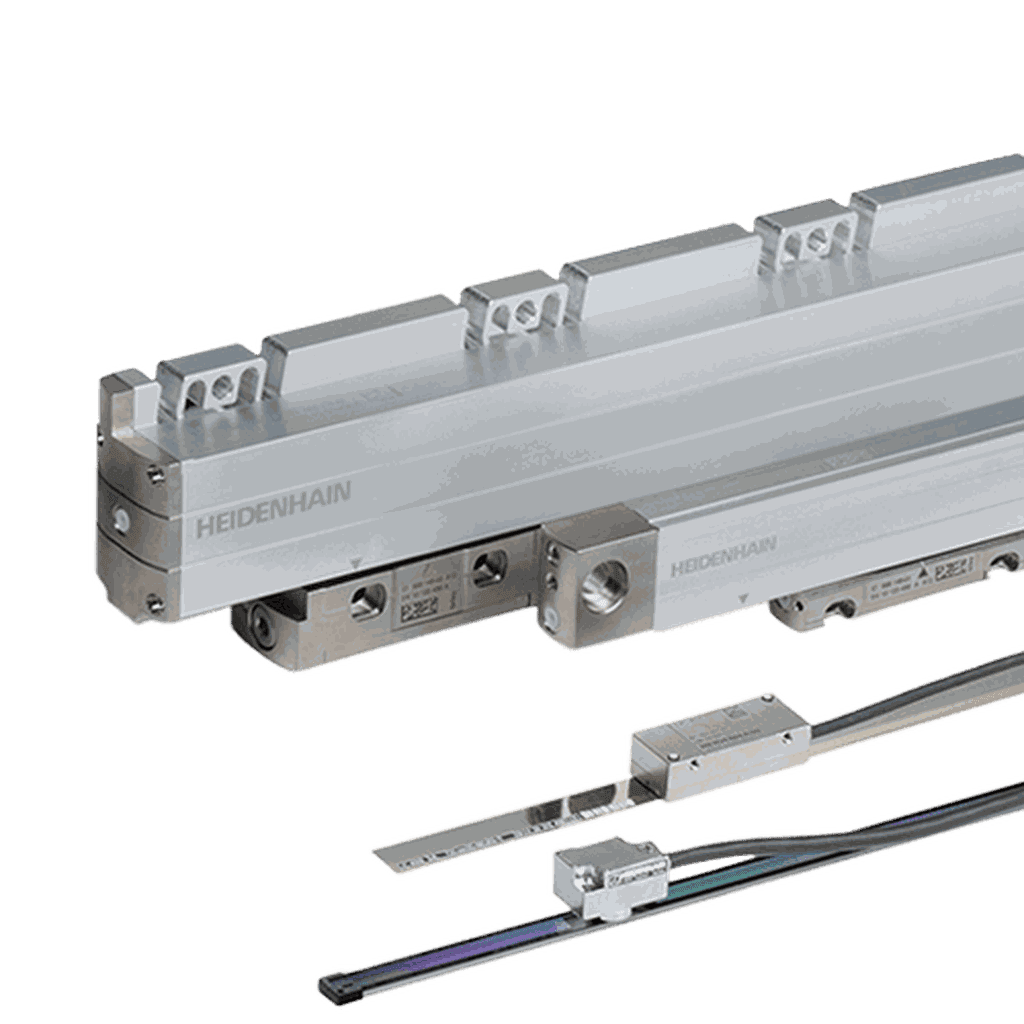

Incremental sealed linear encoder with small cross section
Measuring length: 920 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End block + mounting spar
Output signal: sinusoidal current signals (11 µApp)
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: separate adapter cable
Payment options
Manufacturer
LS 406C 920 5.0 C001 .. B 41S08 .. 0.00 ~11µApp 66 01 ..
Incremental sealed linear encoder with small cross section
Measuring length: 920 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End block + mounting spar
Output signal: sinusoidal current signals (11 µApp)
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: separate adapter cable
| Weight | 1170 g |
|---|---|
| Interface | 11 µApp |
| Measuring length |
Technical information
Magnetbånd MB20-25-10-1-R Længde 2,5 meter
1.170,00 DKK ex. vat.
Clamp sealing LIP LS 503/6XX/7XX/LB301 Clamp for sealing lips LB
15,00 DKK ex. vat.
Service AE LC 4xx 5 .. 0004 Spare part for the LC 4x5 series
Compatible with:
10.180,00 DKK ex. vat.
Sealing lip 0 0 Black
Compatible with:
230,00 DKK ex. vat.
