36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ex. vat.
4.223,00 DKK ex. vat.
Select variation
Delivery
Delivery is calculated at checkout
ERO 1285 512 87S12-30 R 0.00 00 34H30 00 01 .. .. RA ~1Vpp 07

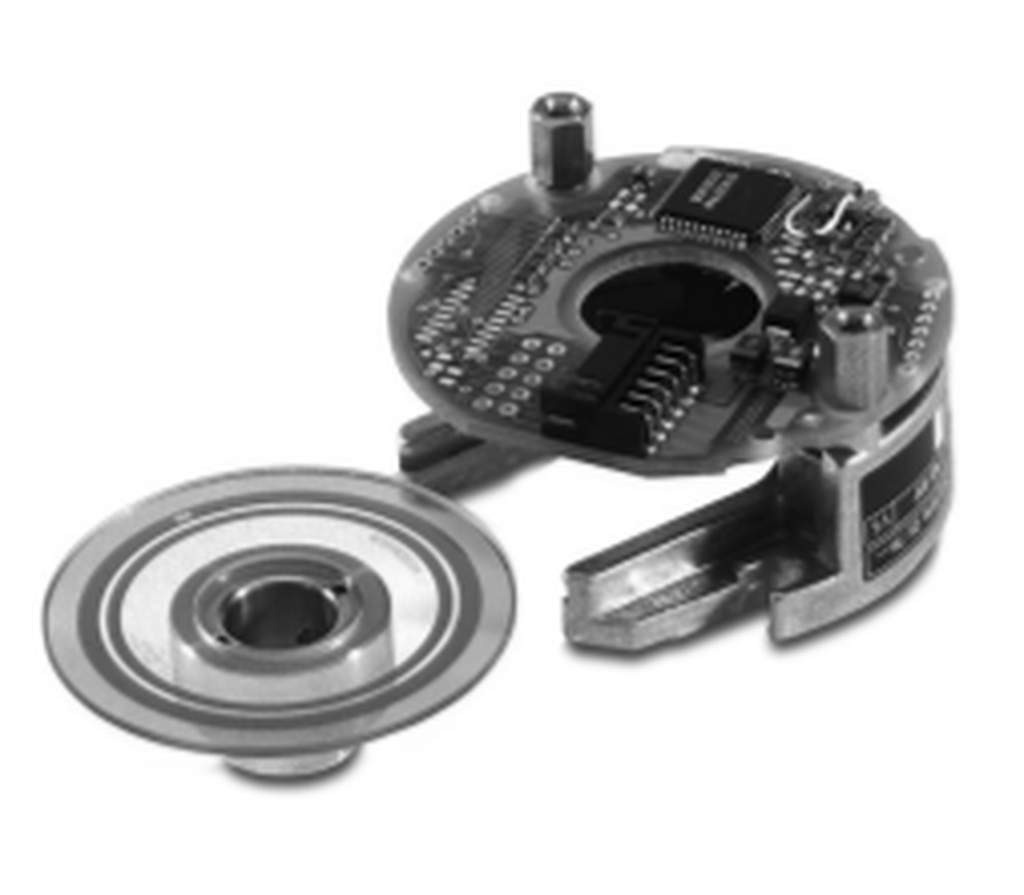

Incremental modular rotary encoder without integral bearing, consisting of a scanning unit and disk/hub assembly
Line count: 512
Output signal: 1Vpp
Cutoff frequency (-3dB): 180.00 kHz
Power supply: 5 V (+-10 %)
Shaft: Hollow shaft with radial fastening, diameter 12 mm
Degree of protection: IP00 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Bent plug connector, double-row with tray, 12-pin
Pin configuration: D297243
Connecting direction: radial
Please pay attention to the product documentation!
Payment options
Manufacturer
ERO 1285 512 87S12-30 R 0.00 00 34H30 00 01 .. .. RA ~1Vpp 07
Incremental modular rotary encoder without integral bearing, consisting of a scanning unit and disk/hub assembly
Line count: 512
Output signal: 1Vpp
Cutoff frequency (-3dB): 180.00 kHz
Power supply: 5 V (+-10 %)
Shaft: Hollow shaft with radial fastening, diameter 12 mm
Degree of protection: IP00 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Bent plug connector, double-row with tray, 12-pin
Pin configuration: D297243
Connecting direction: radial
Please pay attention to the product documentation!
| Weight | 170 g |
|---|---|
| Interface | 1 Vpp |
| Voltage | |
| Shaft |
Technical information
Magnetbånd MB20-25-10-1-R Længde 2,5 meter
1.170,00 DKK ex. vat.
Clamp sealing LIP LS 503/6XX/7XX/LB301 Clamp for sealing lips LB
15,00 DKK ex. vat.
Service AE LC 4xx 5 .. 0004 Spare part for the LC 4x5 series
Compatible with:
10.180,00 DKK ex. vat.
Sealing lip 0 0 Black
Compatible with:
230,00 DKK ex. vat.
