ROD 426 1024 01 -03 K 1.00 02 73A01C 64 01 .. MT RV TTL 07 01

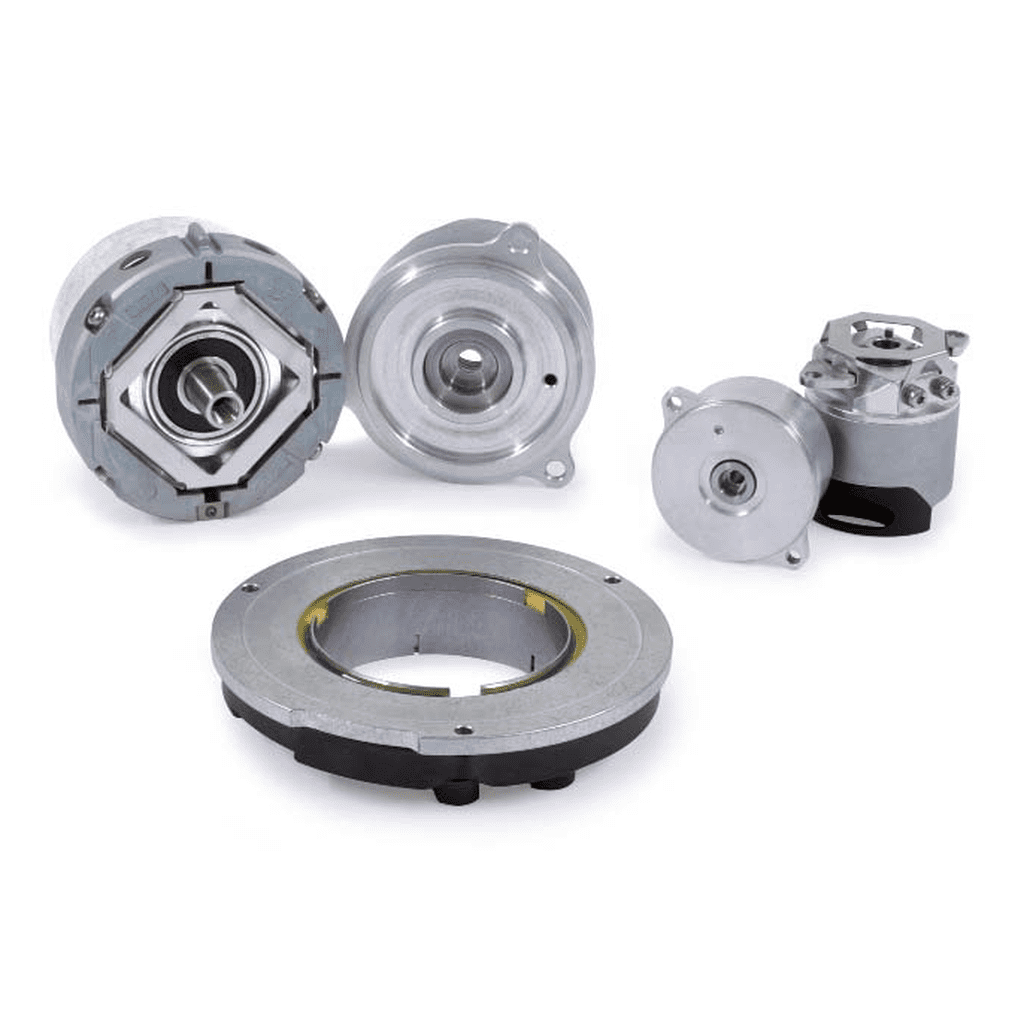

Incremental rotary encoder with integral bearing for separate shaft coupling
Line count: 1024
Output signal: TTL
Max. scanning frequency: 300.00 kHz
Power supply: 5 V (+-10 %)
Flange version: Synchro flange Ø 58 mm, centering collar 50 mm, bolt circle Ø 42 mm, 3 x M4
Shaft: Solid shaft, diameter 6 mm, length 9.5 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: free cable end
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
Special characteristics, rotational encoders: none
Payment options
Manufacturer
ROD 426 1024 01 -03 K 1.00 02 73A01C 64 01 .. MT RV TTL 07 01
Incremental rotary encoder with integral bearing for separate shaft coupling
Line count: 1024
Output signal: TTL
Max. scanning frequency: 300.00 kHz
Power supply: 5 V (+-10 %)
Flange version: Synchro flange Ø 58 mm, centering collar 50 mm, bolt circle Ø 42 mm, 3 x M4
Shaft: Solid shaft, diameter 6 mm, length 9.5 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: free cable end
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
Special characteristics, rotational encoders: none
| Weight | 434 g |
|---|---|
| Interface | TTL |
| Cable length | |
| Line count | 1024 |
| Flange | |
| Shaft |
