ROD 486 3600 03S12-03 K 1.00 02 73A01C 64 01 .. .. RA ~1Vpp 07 01

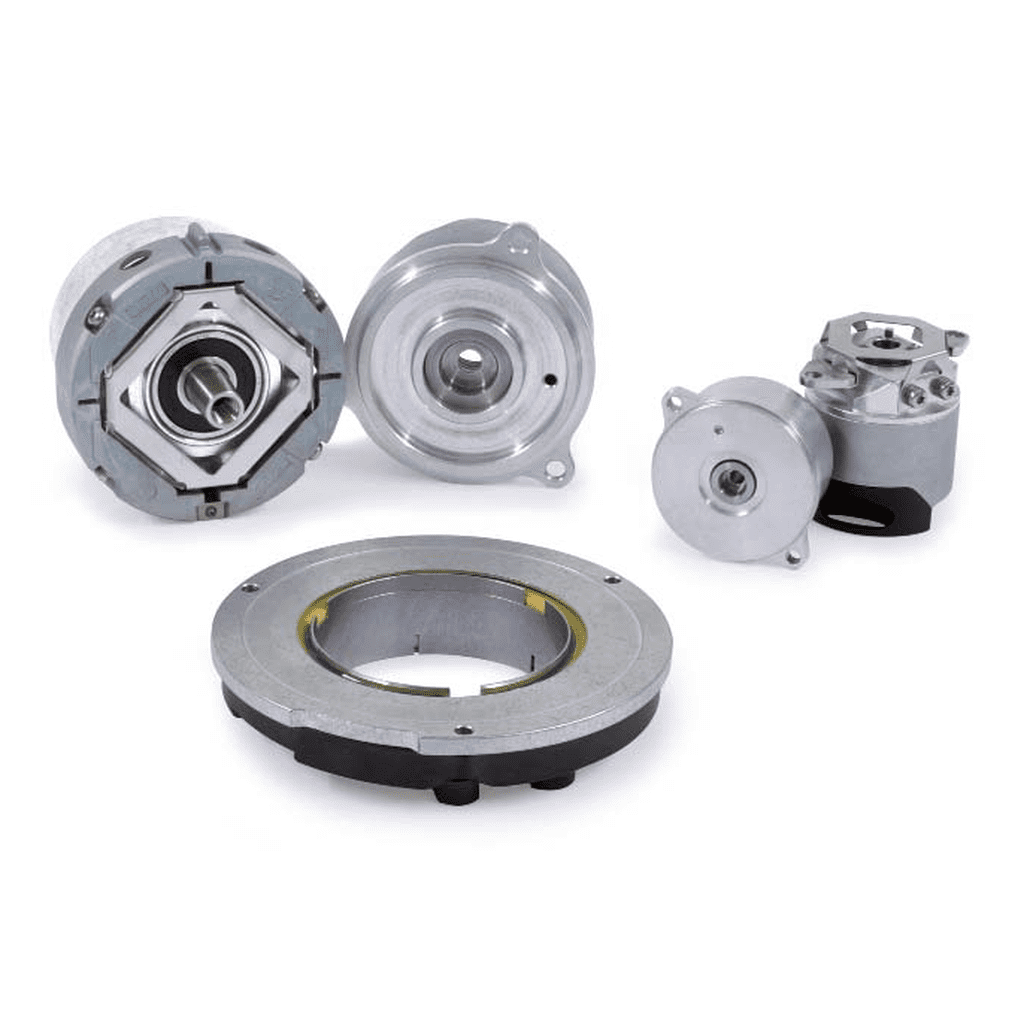

Incremental rotary encoder with integral bearing for separate shaft coupling
Line count: 3600
Output signal: ~1Vpp
Cutoff frequency (-3dB): 180.00 kHz
Power supply: 5 V (+-10 %)
Flange version: Synchro flange Ø 58 mm, centering collar 50 mm, bolt circle Ø 42 mm, 3 x M4
Shaft: Solid shaft, diameter 6 mm, length 9.5 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Coupling M23, male, 12-pin
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
Special characteristics, rotational encoders: none
Payment options
Manufacturer
ROD 486 3600 03S12-03 K 1.00 02 73A01C 64 01 .. .. RA ~1Vpp 07 01
Incremental rotary encoder with integral bearing for separate shaft coupling
Line count: 3600
Output signal: ~1Vpp
Cutoff frequency (-3dB): 180.00 kHz
Power supply: 5 V (+-10 %)
Flange version: Synchro flange Ø 58 mm, centering collar 50 mm, bolt circle Ø 42 mm, 3 x M4
Shaft: Solid shaft, diameter 6 mm, length 9.5 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Coupling M23, male, 12-pin
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
Special characteristics, rotational encoders: none
| Weight | 486 g |
|---|---|
| Interface | 1 Vpp |
| Cable length | |
| Connector type | |
| Flange | |
| Shaft | |
| Line count | 3600 |
