ERN 1070 3600 01 -03 K 1.00 01 50E14A 64 01 .. MT RV TTLx10 05 ..

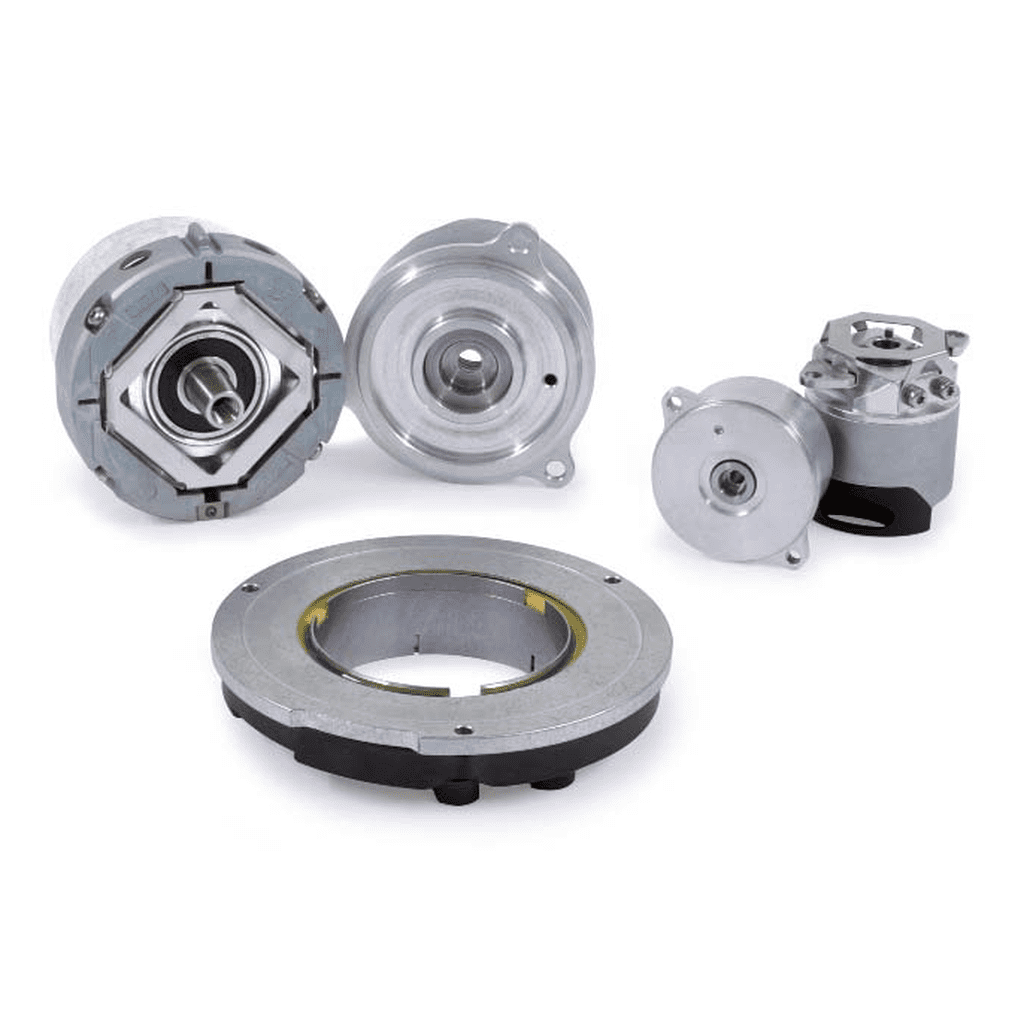

Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 3600
Output signal: TTLx10
Max. scanning frequency:100.00 kHz
Power supply: 5V+-5%
Coupling version: stator coupling for plane surface
Shaft: blind hollow shaft with clamping ring, diameter 6mm
Degree of protection: IP 64
Operating temperature: -10/+70 °C
Electrical connection: free cable end
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
special characteristics, rotational encoders: none
Compatible with:
Payment options
Manufacturer
ERN 1070 3600 01 -03 K 1.00 01 50E14A 64 01 .. MT RV TTLx10 05 ..
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 3600
Output signal: TTLx10
Max. scanning frequency:100.00 kHz
Power supply: 5V+-5%
Coupling version: stator coupling for plane surface
Shaft: blind hollow shaft with clamping ring, diameter 6mm
Degree of protection: IP 64
Operating temperature: -10/+70 °C
Electrical connection: free cable end
Pin configuration: D294999
Connecting direction: Cable outlet for axial and radial use
Cable length: 1.00 m
special characteristics, rotational encoders: none
Compatible with:
| Weight | 270 g |
|---|---|
| Interface | TTL |
| Voltage | |
| Cable length | |
| IP rating/classification |
Technical information
