36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ex. vat.
2.313,00 DKK ex. vat.
Select variation
Delivery
Delivery is calculated at checkout

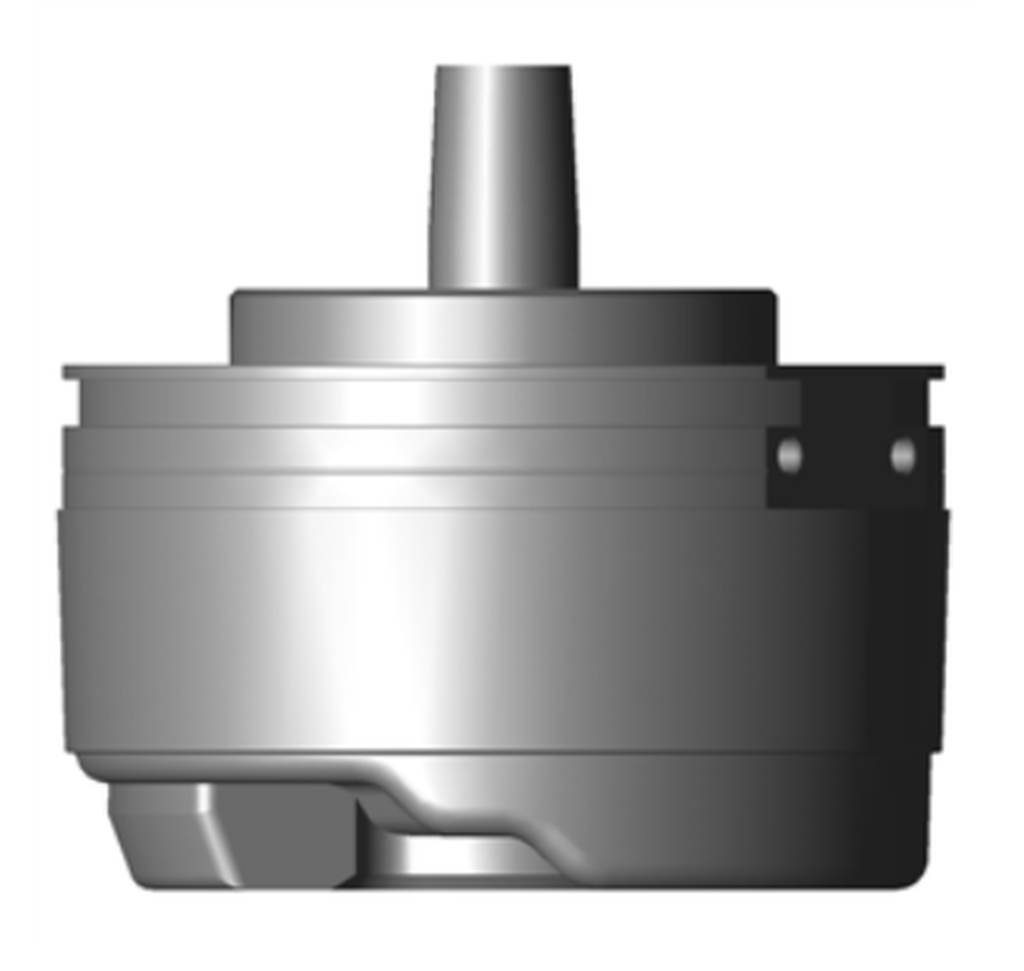

ERN 1387 2048 62S14-70 K 0.00 .. 65B06 40 01 .. .. RA ~1Vpp 05 01
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 2048, Additional circular 1 sine and 1 cosine
scale track: signal/revolution
Output signal: ~1Vpp
Cutoff frequency (-3dB):210.00 kHz
Power supply: 5 V (+-5 %)
Coupling version: Expanding ring coupling for 65mm mating diameter
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+120 °C
Electrical connection: Plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration: D319274
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with screws (M5x50 and M5x47) and warning information
Please pay attention to the product documentation!
Payment options
Manufacturer
ERN 1387 2048 62S14-70 K 0.00 .. 65B06 40 01 .. .. RA ~1Vpp 05 01
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 2048, Additional circular 1 sine and 1 cosine
scale track: signal/revolution
Output signal: ~1Vpp
Cutoff frequency (-3dB):210.00 kHz
Power supply: 5 V (+-5 %)
Coupling version: Expanding ring coupling for 65mm mating diameter
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+120 °C
Electrical connection: Plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration: D319274
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with screws (M5x50 and M5x47) and warning information
Please pay attention to the product documentation!
| Weight | 315 g |
|---|---|
| Interface | 1 Vpp |
| IP rating/classification | |
| Line count | 2048 |
| Voltage | |
| Connector type | |
| Shaft |
Technical information
