36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ex. vat.
4.437,00 DKK ex. vat.
Select variation
Delivery
Delivery is calculated at checkout
EQN 1325 2048 62S12-78 K 0.00 .. 65B06 40 01 .. .. D EnDat01 37 01

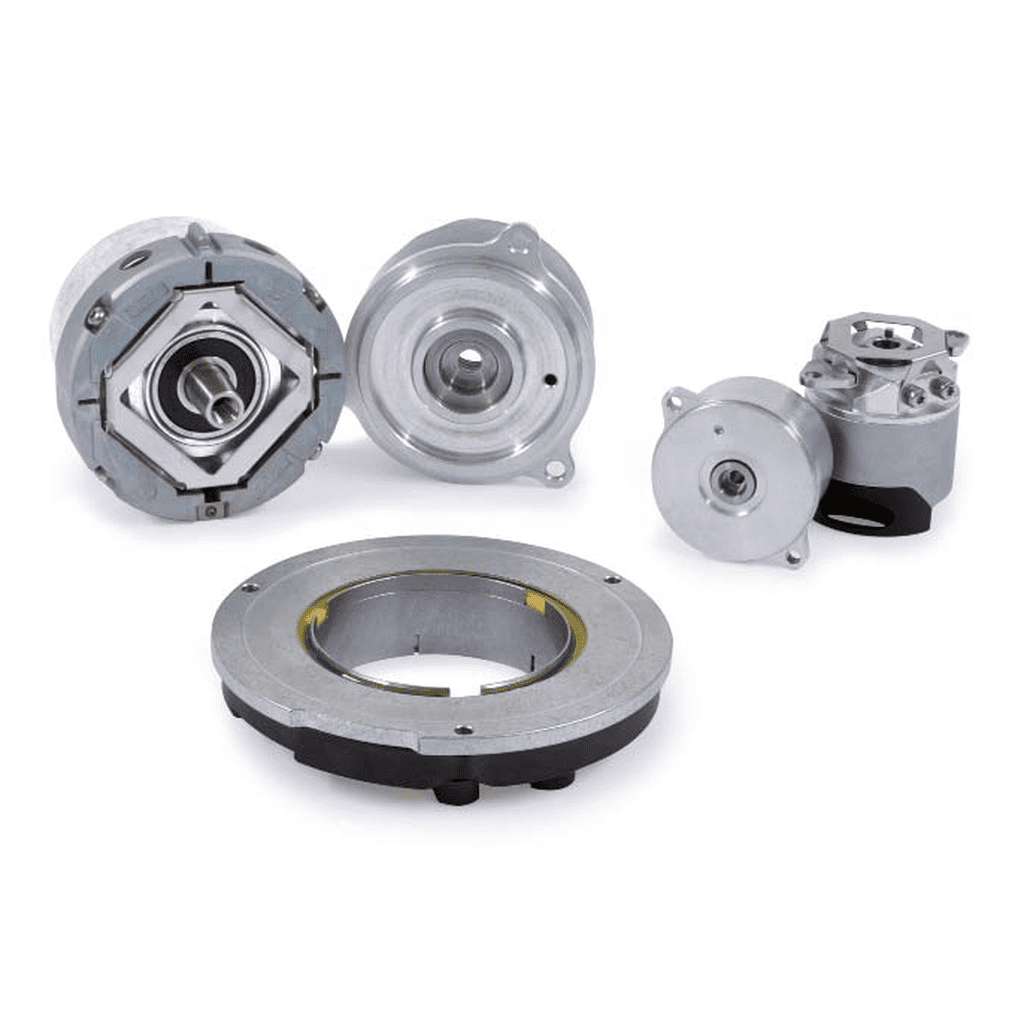

Rotary encoder with integral bearing
Differentiable revolutions: 4096
Positions per revolution: 8192
Data interface: EnDat01
Output code: Binary
Line count: 2048
Output signal: 1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply: 3.6 V ... 14 V
Coupling version: Expanding ring coupling for 65mm mating diameter
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Protection rating: IP40 (EN60529)
Operating temperature: -40/+115 °C
Electrical connection: Plug connector, straight, double-row, 12-pin, with locking mechanism and walls
Pin configuration: D323746
Connecting direction: Cable outlet for axial and radial use
Included part: self-locking screw M5x50 -8.8 DIN 6912
Compatible with:
Payment options
Manufacturer
EQN 1325 2048 62S12-78 K 0.00 .. 65B06 40 01 .. .. D EnDat01 37 01
Rotary encoder with integral bearing
Differentiable revolutions: 4096
Positions per revolution: 8192
Data interface: EnDat01
Output code: Binary
Line count: 2048
Output signal: 1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply: 3.6 V ... 14 V
Coupling version: Expanding ring coupling for 65mm mating diameter
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Protection rating: IP40 (EN60529)
Operating temperature: -40/+115 °C
Electrical connection: Plug connector, straight, double-row, 12-pin, with locking mechanism and walls
Pin configuration: D323746
Connecting direction: Cable outlet for axial and radial use
Included part: self-locking screw M5x50 -8.8 DIN 6912
Compatible with:
| Weight | 377 g |
|---|---|
| Interface | 1 Vpp |
| IP rating/classification | |
| Line count | 2048 |
| Voltage | |
| Connector type | |
| Shaft |
Technical information
