36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ex. vat.
263,00 DKK ex. vat.
Select variation
Delivery
Delivery is calculated at checkout

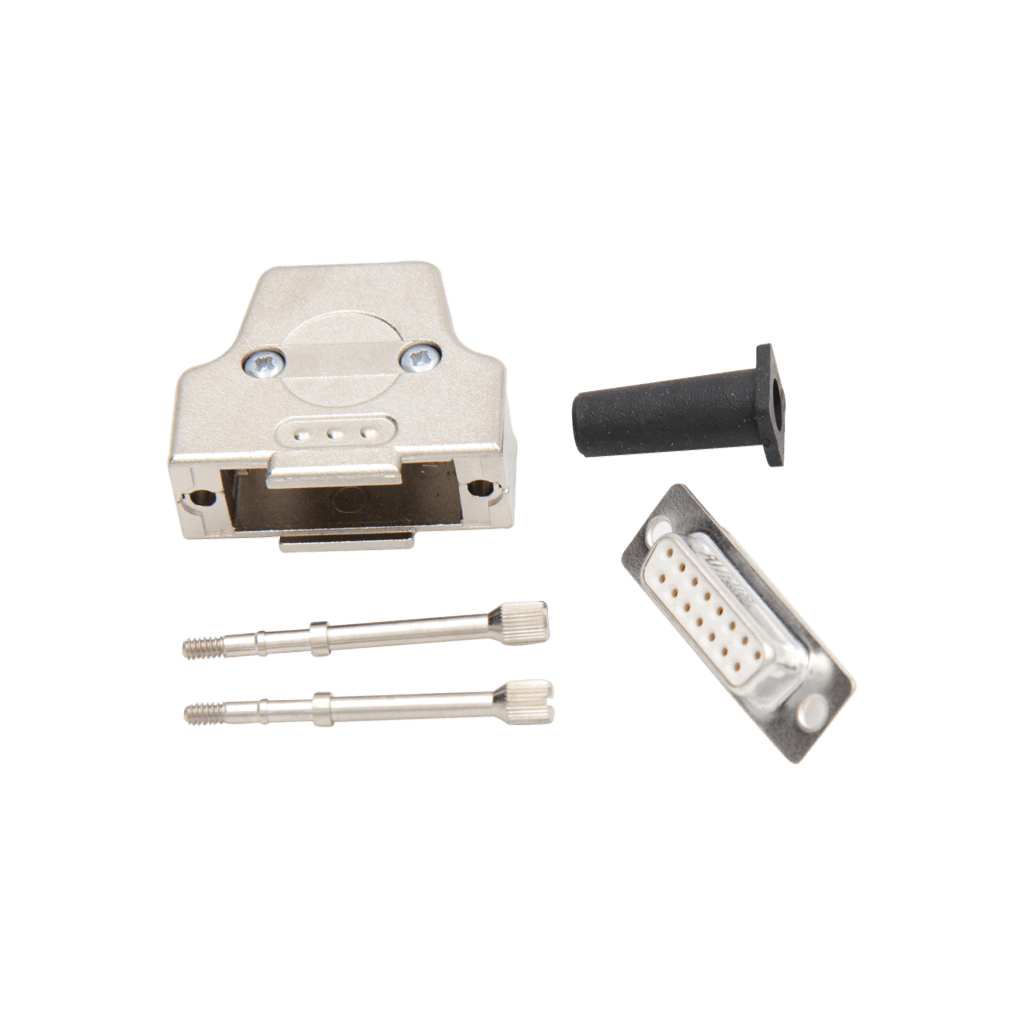

Connector 4E F str 15 Au 2 sol 0.56qmm AWG20 Fullmetal
Cable connector, D-shell
Electrical connection geometry: D-sub connector, metal housing, 2-row, with locking screws
Type of contact: Female
Orientation of contact to connection side: Straight
Number of contacts: 15
Diameter in mm: 6.50
Contact surface in connection area: Au (Gold)
Type of locking mechanism: Locking mechanism using jack screws with UNC thread
Cross section: 0.56 qmm
Cross section, US dimensions: AWG20
Connection type: Connection by soldering
Payment options
Manufacturer
Connector 4E F str 15 Au 2 sol 0.56qmm AWG20 Fullmetal
Cable connector, D-shell
Electrical connection geometry: D-sub connector, metal housing, 2-row, with locking screws
Type of contact: Female
Orientation of contact to connection side: Straight
Number of contacts: 15
Diameter in mm: 6.50
Contact surface in connection area: Au (Gold)
Type of locking mechanism: Locking mechanism using jack screws with UNC thread
Cross section: 0.56 qmm
Cross section, US dimensions: AWG20
Connection type: Connection by soldering
| Weight | 67 g |
|---|---|
| Diameter | 6mm |
| Connector type |
Technical information
Coupling 03 M str 17 8.00 Au M23 1.00qmm AWG18 Crimp 4 Cable connector, circular Electrical connection geometry: Coupling M23 Type of contact: Male Orientation of contact to connection side: Straight Number of contacts: 17 Diameter in mm: 8.00 Contact surface in connection area: Au (Gold) Type of locking mechanism: Locking device with thread size M23 Cross section: 1.00 qmm Cross section US dimensions: AWG18 Connection type: Connection by crimp Special characteristics connecting element: with locking
288,00 DKK ex. vat.
Signal connector 17-pole type. With insulator,contact pins, ring crimp sleeve, and 2-hole rubber insert
455,00 DKK ex. vat.
Signal connector 17-pole type. With insulator,contact pins, ring crimp sleeve.
455,00 DKK ex. vat.
Signal connector 17-pole type: 6FX2003-0SU17 union nut socket 1x 17-pole insulator 17x cont. (0.08-0.22 mm2) 17x cont. (0.20-0.56 mm2) 2x cable terminal 6.5 to 10 and 10.1 to 13 mm Pack=1 unit
353,00 DKK ex. vat.
