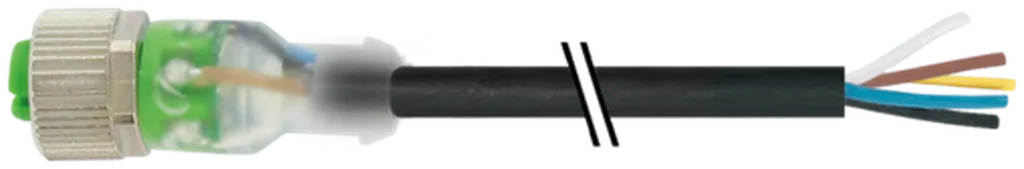

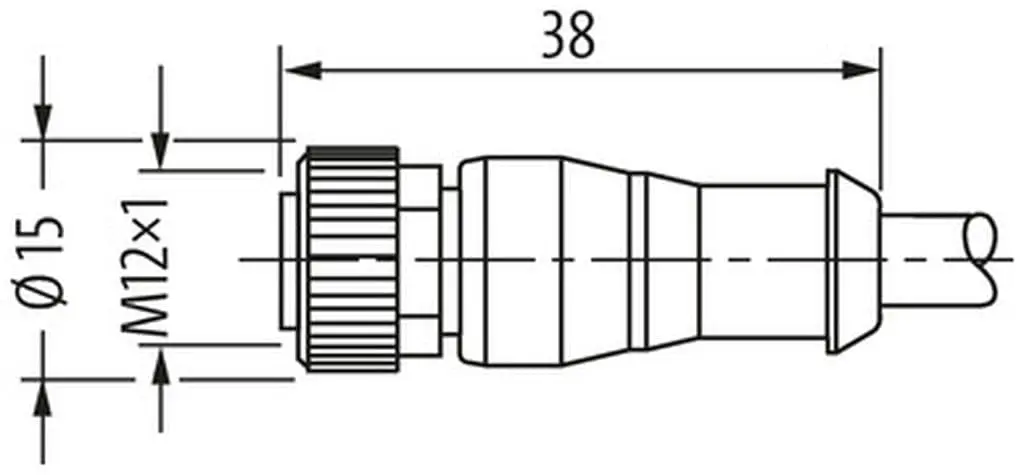

M12 female 0° A-cod.with cable 3LED PUR 5x0.34 bk UL/CSA+drag ch. 5m
Female straight

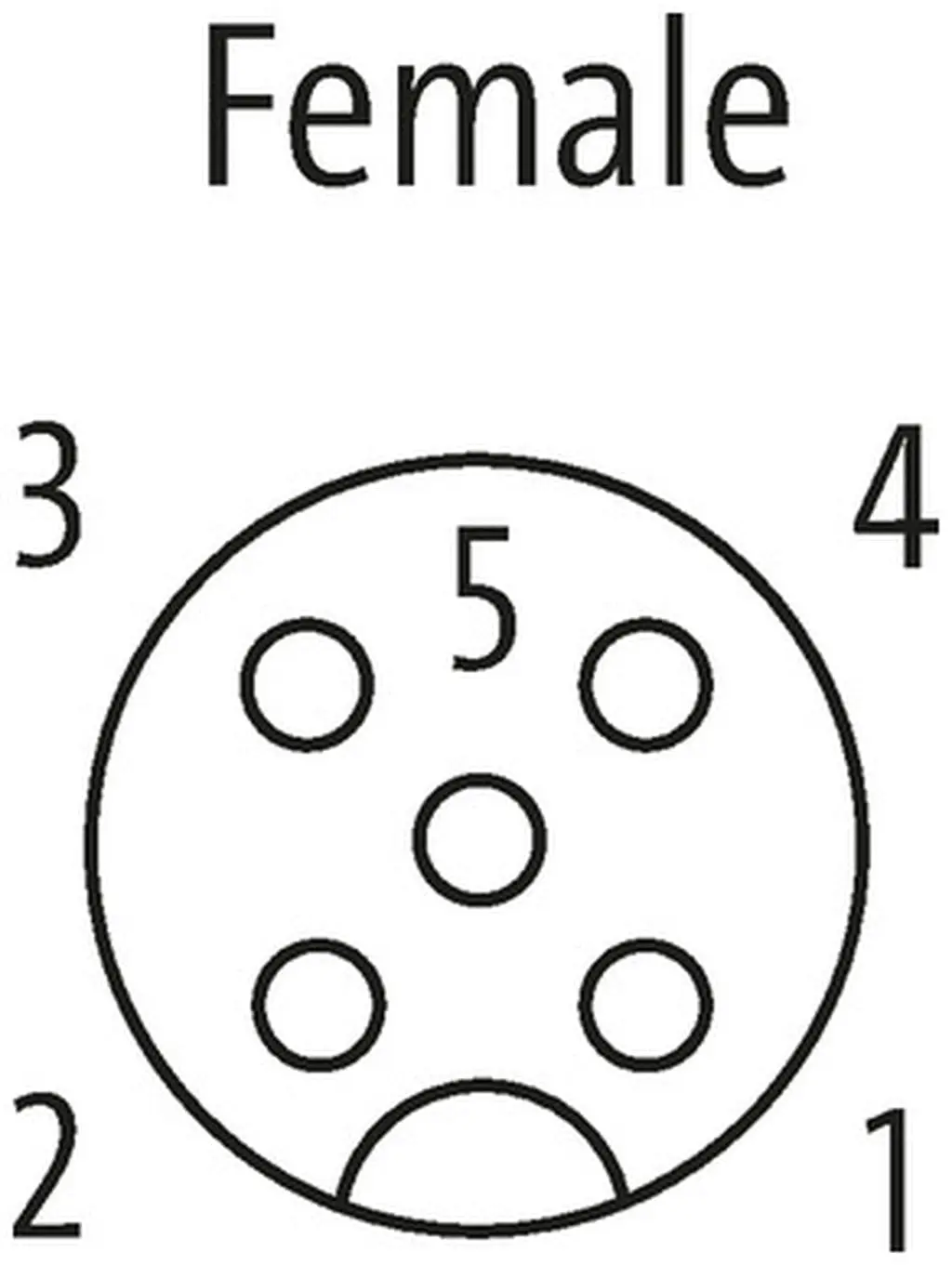

M12, 5-pole

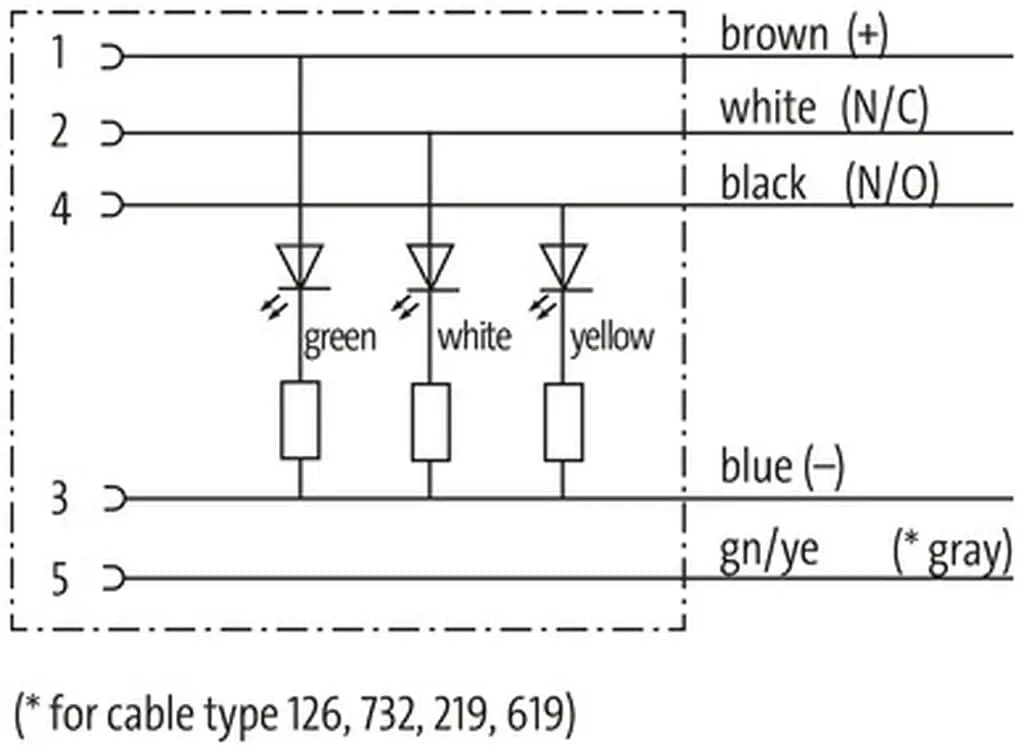

3× LED (PNP)
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Payment options
Manufacturer
M12 female 0° A-cod.with cable 3LED PUR 5x0.34 bk UL/CSA+drag ch. 5m
Female straight
M12, 5-pole
3× LED (PNP)
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Technical information
APK 03 10 8.00 02B017 16B015-5E BK A007 01 2 .. 0.00 Adapter cable for different connector connection Cable type: PUR Ø 8.0 mm Cable design: 4x2x0.16+4x0.5+4x0.16 Cable length: 8.00 m Encoder side: Connector M23, female, 17-pin Side of subsequent electronic: D-sub connector, 2-row, with locking screws, female, 15-pin Special characteristics, connecting cable: Pos.Enc.
1.099,00 DKK ex. vat.
APK 02 05 1.00 0TB014 03S017-7V BK .. 01 1 .. 0.00 Adapter cable for different connector connection Cable type: PUR Ø 6.0 mm Cable design: 6x2x0.19 mm² Cable length: 1.00 m Encoder side: Coupling M12, 14-pin Side of subsequent electronic: Coupling M23, male, 17-pin
Compatible with:
738,00 DKK ex. vat.
(Successor type for 6FX2002.....) Signal cable pre-assembled for incremental encoder sin/cos 1 Vpp 6FX2001-3 4x (2x0.34)+4x 0.5 C Connector full thread M23 MOTION-CONNECT 800PLUS trailable, UL/CSA, DESINA Dmax=9.3 mm Length (m)= type: 6FX8002-2CA11 length (m)= +0 +10 +5 +0
1.469,00 DKK ex. vat.
(Successor type for 6FX2002.....) Power cable pre-assembled 4x 1.5 C, connector Full-thread, size 1 MOTION-CONNECT 800PLUS trailable UL/CSA DESINA Dmax=9.5 mm, Length (m)= TYPE: 6FX8002-5CA01 LENGTH (M) = 0 + 20 + 5 + 0
Compatible with:
3.577,00 DKK ex. vat.
