36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK exkl. moms.
3.911,00 DKK exkl. moms.
Välj variant
Frakt
Frakt beräknas i kassan
LS 373C 320 5.0 C001 .. M4 9FS09 Fa 3.00 1W TTLx1u 50.00 90 MT 01 ..

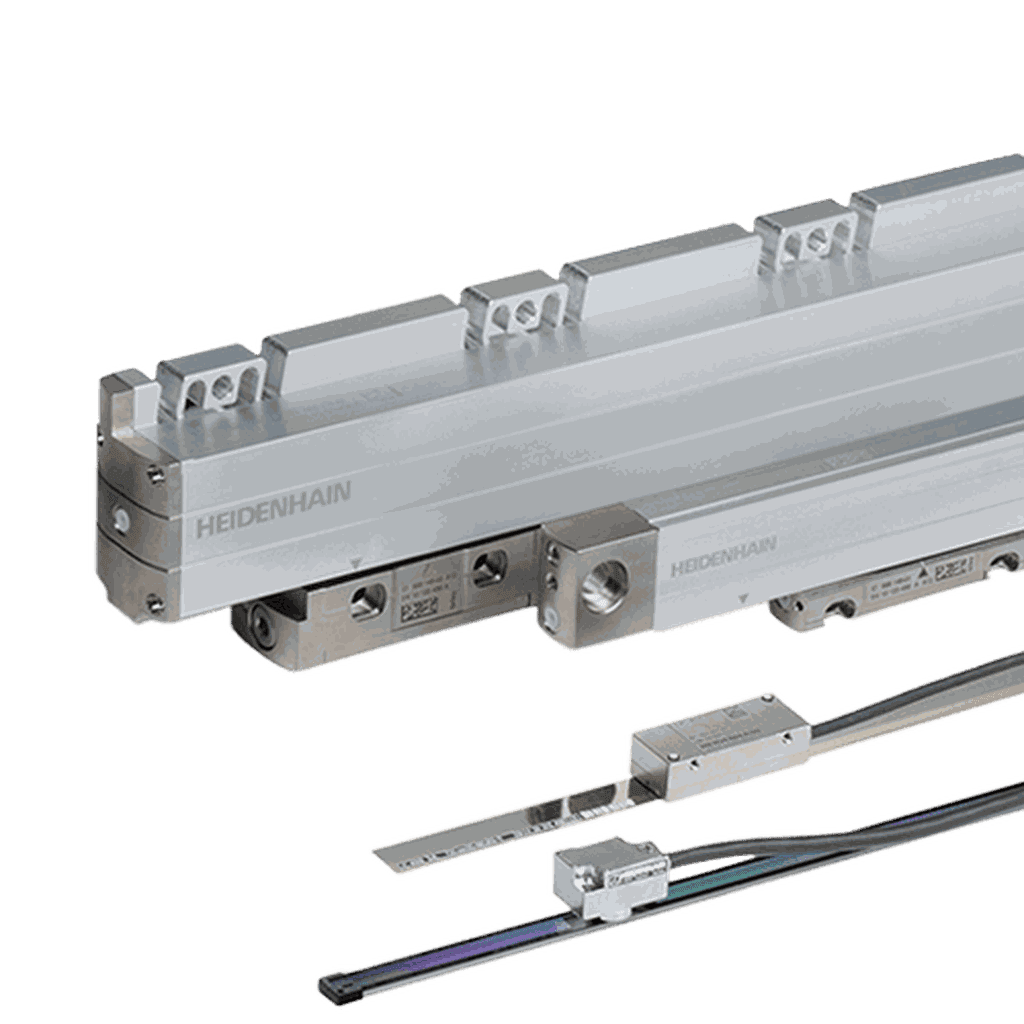

Incremental sealed linear encoder with small cross section
Measuring length: 320 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End blocks for M4 mounting screws
Output signal: Square-wave signals, TTL levels with 1-fold interpolation, non-clocked
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Further reference marks: none
Reference pulse width: 90°
Fault detection signal: MT
Power supply: 5 V (+-10 %)
Cable length: 3.00 m
Electrical connection: D-sub connector, metalized plastic housing, 2-row, with locking screws, male, 9-pin
Pin configuration: D1345444
Cable type: PUR Ø 4.3 mm with armor Ø 7.3 mm
Betalningsalternativ
Producent
LS 373C 320 5.0 C001 .. M4 9FS09 Fa 3.00 1W TTLx1u 50.00 90 MT 01 ..
Incremental sealed linear encoder with small cross section
Measuring length: 320 mm
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End blocks for M4 mounting screws
Output signal: Square-wave signals, TTL levels with 1-fold interpolation, non-clocked
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Further reference marks: none
Reference pulse width: 90°
Fault detection signal: MT
Power supply: 5 V (+-10 %)
Cable length: 3.00 m
Electrical connection: D-sub connector, metalized plastic housing, 2-row, with locking screws, male, 9-pin
Pin configuration: D1345444
Cable type: PUR Ø 4.3 mm with armor Ø 7.3 mm
Teknisk information
Magnetbånd MB20-25-10-1-R Længde 2,5 meter
1.170,00 DKK exkl. moms.
Clamp sealing LIP LS 503/6XX/7XX/LB301 Clamp for sealing lips LB
15,00 DKK exkl. moms.
Service AE LC 4xx 5 .. 0004 Spare part for the LC 4x5 series
Kompatibel med:
10.180,00 DKK exkl. moms.
Sealing lip 0 0 Black
Kompatibel med:
230,00 DKK exkl. moms.
