36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK exkl. moms.
4.764,00 DKK exkl. moms.
Välj variant
Frakt
Frakt beräknas i kassan

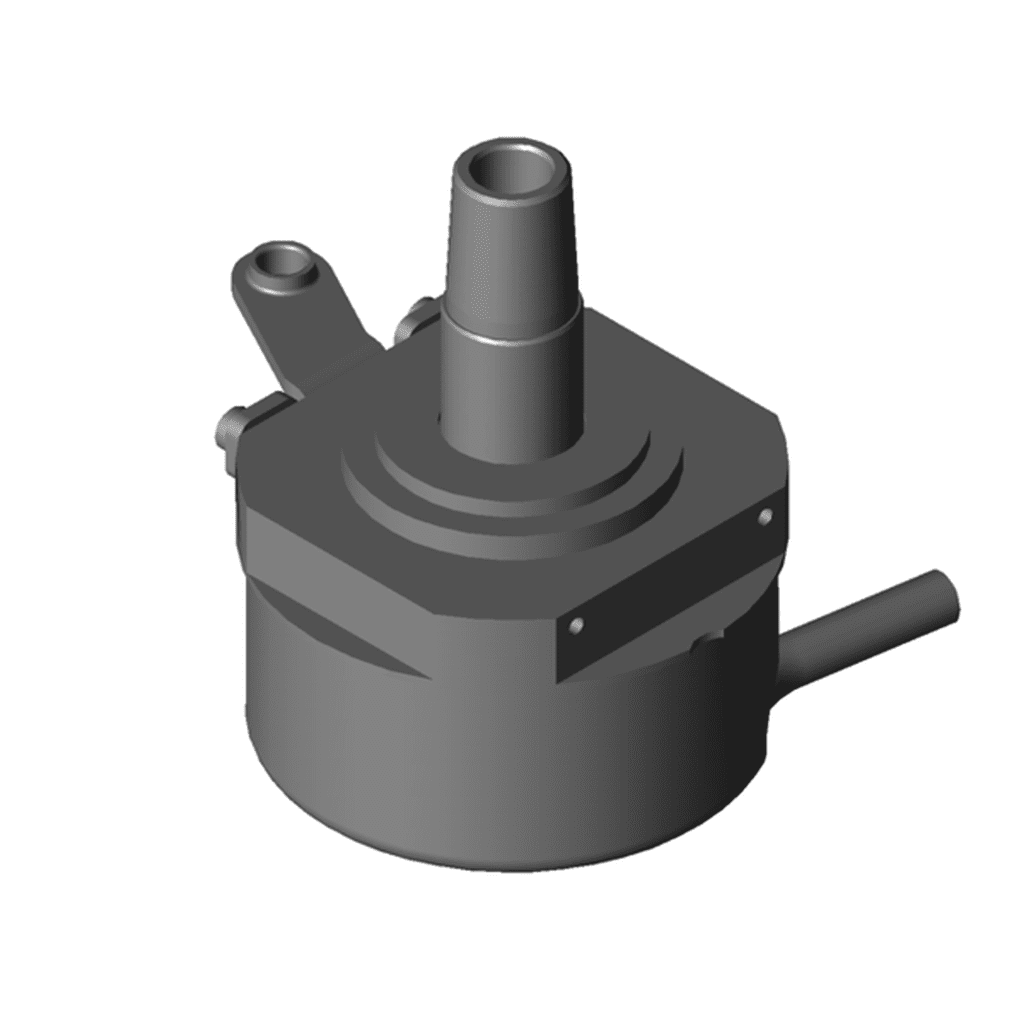

ERN 421
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 2500
Output signal: TTL
Max. scanning frequency: 300.00 kHz
Power supply: 5 V (+-10 %)
Coupling version: Mounting plate for wire clip
Shaft: Tapered shaft 1:10, functional diameter 13.25 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Flange socket without conductive coating, male, 17-pin, Cannon model
Pin configuration: D312162
Connecting direction: Cable outlet for axial and radial use
Included part: no enclosed part
Cable length: 0.22 m
Please pay attention to the product documentation!
Betalningsalternativ
Producent
ERN 421
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 2500
Output signal: TTL
Max. scanning frequency: 300.00 kHz
Power supply: 5 V (+-10 %)
Coupling version: Mounting plate for wire clip
Shaft: Tapered shaft 1:10, functional diameter 13.25 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Flange socket without conductive coating, male, 17-pin, Cannon model
Pin configuration: D312162
Connecting direction: Cable outlet for axial and radial use
Included part: no enclosed part
Cable length: 0.22 m
Please pay attention to the product documentation!
| Vikt | 452 g |
|---|---|
| Interface | TTL |
| Spänning | |
| IP Klassificering | |
| Antal rader | 2500 |
| Axel | |
| Stik typ |
Teknisk information
