EQN 425 512 27S17-E0 R 0.00 .. 68C14 64 01 .. .. G SSI41r1 20 01 ..

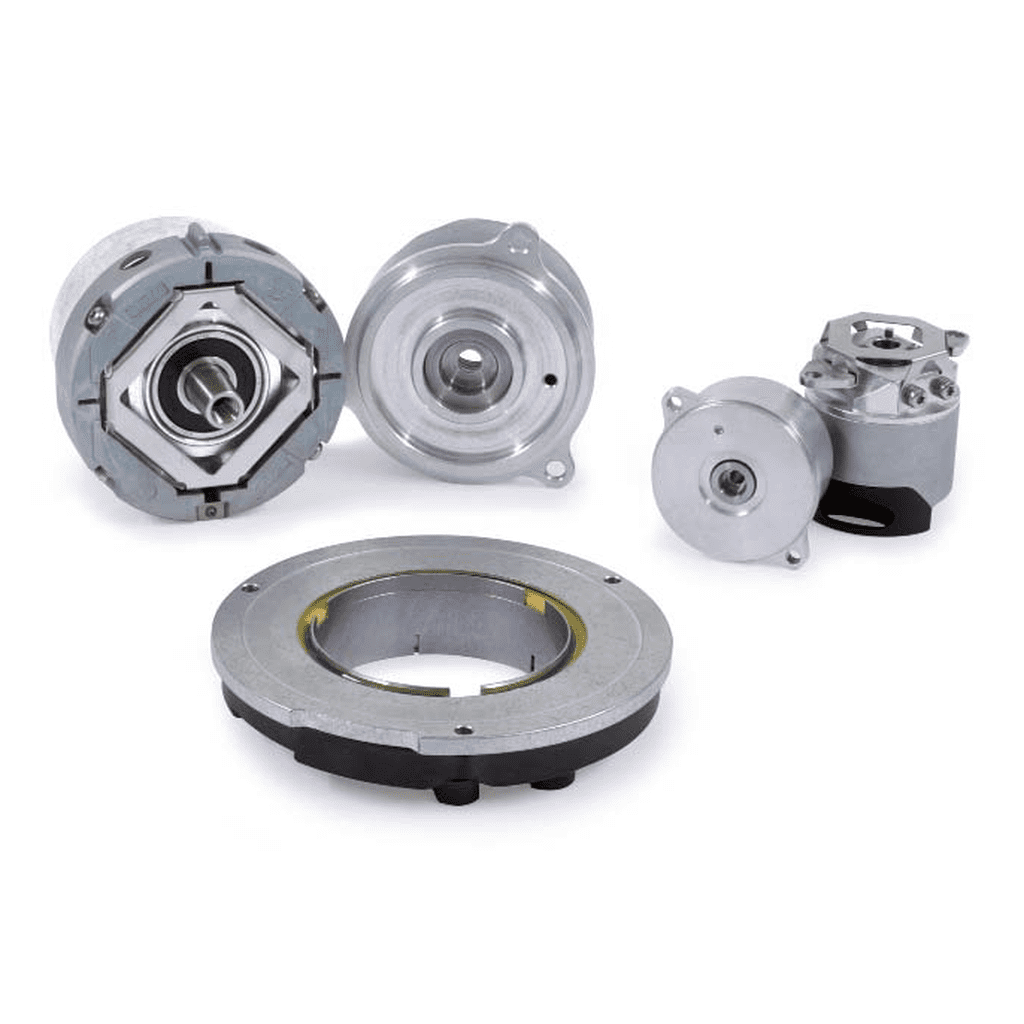

Rotary encoder with integral bearing
Differentiable
revolutions: 4096
Positions per revolution: 8192
Data interface: SSI41r1
Output code: Gray
Line count: 512
Output signal: ~1Vpp
Cutoff frequency (-3dB): 130.00 kHz
Power supply: 10 V ... 30 V
Coupling version: Stator coupling for plane surface (hole circle Ø 63 mm)
Shaft: Blind hollow shaft with clamping ring, diameter 10mm, depth 24 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Flange socket M23, male, 17-pin
Pin configuration: D533688
Connecting direction: radial
Please pay attention to the product documentation!
Betalningsalternativ
Producent
EQN 425 512 27S17-E0 R 0.00 .. 68C14 64 01 .. .. G SSI41r1 20 01 ..
Rotary encoder with integral bearing
Differentiable
revolutions: 4096
Positions per revolution: 8192
Data interface: SSI41r1
Output code: Gray
Line count: 512
Output signal: ~1Vpp
Cutoff frequency (-3dB): 130.00 kHz
Power supply: 10 V ... 30 V
Coupling version: Stator coupling for plane surface (hole circle Ø 63 mm)
Shaft: Blind hollow shaft with clamping ring, diameter 10mm, depth 24 mm
Degree of protection: IP64 (EN60529)
Operating temperature: -40/+100 °C
Electrical connection: Flange socket M23, male, 17-pin
Pin configuration: D533688
Connecting direction: radial
Please pay attention to the product documentation!
| Vikt | 400 g |
|---|---|
| Interface | 1 Vss |
| Antal rader | 512 |
| IP Klassificering | |
| Spänning | |
| Stik typ |
Teknisk information
