36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK exkl. moms.
Välj variant
Frakt
Frakt beräknas i kassan
EBI 1135 16 5ZS15-S5 R 0.00 .. 82C70E 00 01 .. OD D EnDat22 37 01

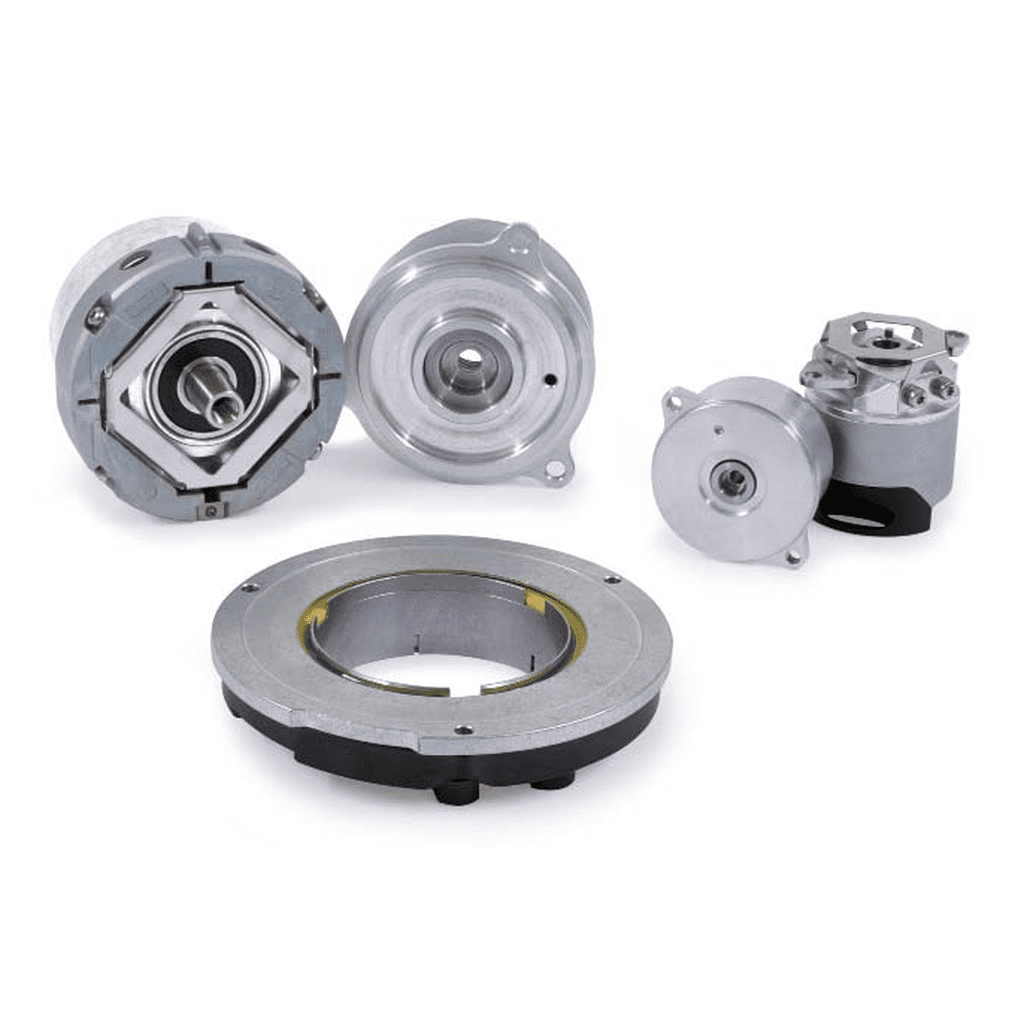

Absolute modular rotary encoder (battery-backed
multiturn) with inductive scanning without integral bearing
Differentiable
revolutions:65536
Positions per revolution: 262144
Data interface: EnDat22
Output code: Dual
Fault detection signal: Error message "BBMT rotation counter overflow"deactivated
Power supply: 3.6 V ... 14 V
Flange version:Synchro flange Ø 36.83 mm,overall length 9.9 mm, centering collar Ø 36.83 mm, length 2.45 mm
Shaft: Blind hollow shaft for axial fastening, diameter 6 mm, depth 2.8 mm
Degree of protection: IP 00 (EN 60529)
Operating temperature: -20/+115 °C
Electrical connection: Bent plug connector, double-row, 15-pin
Pin configuration: D593372
Connecting direction: radial
Included part: Screw M3 x12 -A2 ISO 4762 with Precote 30
Please pay attention to the product documentation!
Betalningsalternativ
Producent
EBI 1135 16 5ZS15-S5 R 0.00 .. 82C70E 00 01 .. OD D EnDat22 37 01
Absolute modular rotary encoder (battery-backed
multiturn) with inductive scanning without integral bearing
Differentiable
revolutions:65536
Positions per revolution: 262144
Data interface: EnDat22
Output code: Dual
Fault detection signal: Error message "BBMT rotation counter overflow"deactivated
Power supply: 3.6 V ... 14 V
Flange version:Synchro flange Ø 36.83 mm,overall length 9.9 mm, centering collar Ø 36.83 mm, length 2.45 mm
Shaft: Blind hollow shaft for axial fastening, diameter 6 mm, depth 2.8 mm
Degree of protection: IP 00 (EN 60529)
Operating temperature: -20/+115 °C
Electrical connection: Bent plug connector, double-row, 15-pin
Pin configuration: D593372
Connecting direction: radial
Included part: Screw M3 x12 -A2 ISO 4762 with Precote 30
Please pay attention to the product documentation!
| Vikt | 70 g |
|---|---|
| Interface | HEIDENHAIN EnDat |
| Spänning | |
| IP Klassificering | |
| Fläns |
Teknisk information
