36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ekskl. moms.
4.910,00 DKK ekskl. moms.
Vælg variant
Levering
Levering bliver beregnet ved kassen
SENC 150 28.0 725 Diff 5 C001 13.0 4.00 3AS09 63 DK 5.0 45 1

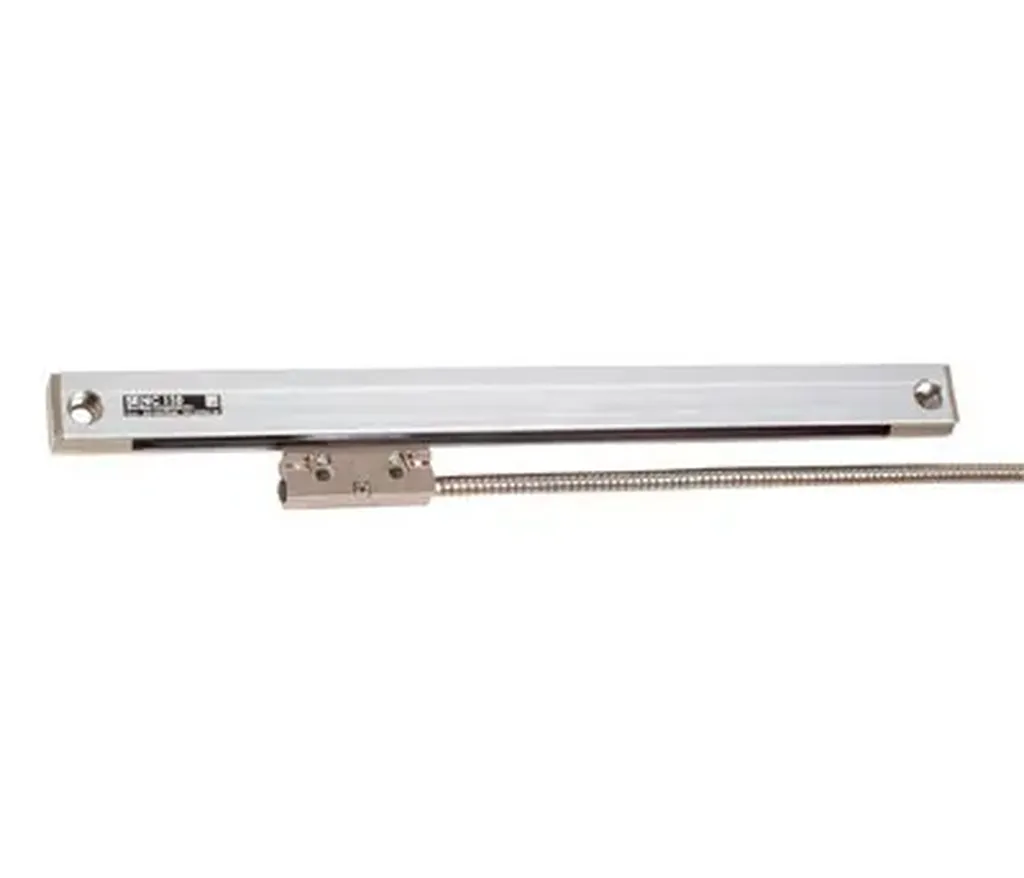

Incremental sealed linear encoder with small cross section
Measuring length: 725 mm 755.65 mm (max) 28.0 inch 29.75 inch (max)
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End block + mounting spar
Output signal: Differential TTL output
Resolution: 5 µm at 4-fold evaluation
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: D-sub connector, metal housing, 2-row, with metal armor and locking screws, 9-pin male
Cable type: PVC Ø 5.0 mm with armor Ø 8.25 mm
Cable length: 4.00 m 13.0 foot
Betalingsmuligheder
Producent
SENC 150 28.0 725 Diff 5 C001 13.0 4.00 3AS09 63 DK 5.0 45 1
Incremental sealed linear encoder with small cross section
Measuring length: 725 mm 755.65 mm (max) 28.0 inch 29.75 inch (max)
Accuracy grade: ± 5.0 µm
Grating period: 20.000 µm
Fastening type: End block + mounting spar
Output signal: Differential TTL output
Resolution: 5 µm at 4-fold evaluation
Reference mark position: Distance-coded reference marks with nominal increment 1000 x grating period
Power supply: 5V+-5%
Electrical connection: D-sub connector, metal housing, 2-row, with metal armor and locking screws, 9-pin male
Cable type: PVC Ø 5.0 mm with armor Ø 8.25 mm
Cable length: 4.00 m 13.0 foot
