ERN 1387 2048 62S14-70 K 0.00 .. 65B.. 40 09 .. .. RA ~1.05Vpp 05 01

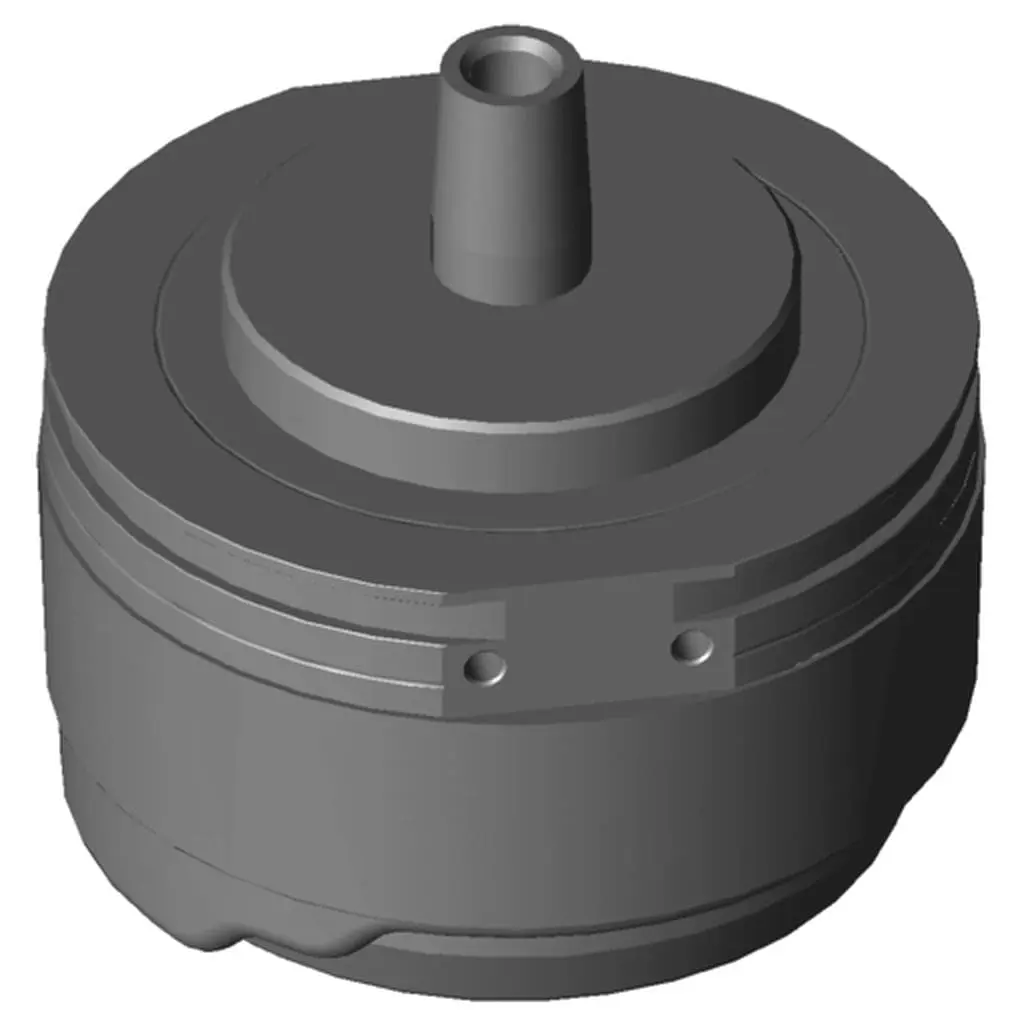

Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 2048, Additional circular 1 sine and 1 cosine
scale track: signal/revolution
Output signal: ~1.05Vpp
Power supply: 5 V (+-5 %)
Coupling version: without coupling
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+120 °C
Electrical connection: Plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration: D319274
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer plates and central screw
Please pay attention to the product documentation!
Kompatibel med:
Betalingsmuligheder
Producent
ERN 1387 2048 62S14-70 K 0.00 .. 65B.. 40 09 .. .. RA ~1.05Vpp 05 01
Incremental rotary encoder with integral bearing
for mounting by stator coupling
Line count: 2048, Additional circular 1 sine and 1 cosine
scale track: signal/revolution
Output signal: ~1.05Vpp
Power supply: 5 V (+-5 %)
Coupling version: without coupling
Shaft: Tapered shaft 1 to 10, functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+120 °C
Electrical connection: Plug connector, straight, double-row, 14-pin, with locking mechanism and walls
Pin configuration: D319274
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer plates and central screw
Please pay attention to the product documentation!
Kompatibel med:
| Vægt | 343 g |
|---|---|
| Interface | 1 Vss |
| IP Klassificering | |
| Pulstal | 2048 |
| Spænding | |
| Stiktype | |
| Aksel |
