EQN 1325 2048 62S12-78 K 0.00 .. 65B.. 40 09 .. .. D EnDat01 37 01 ..

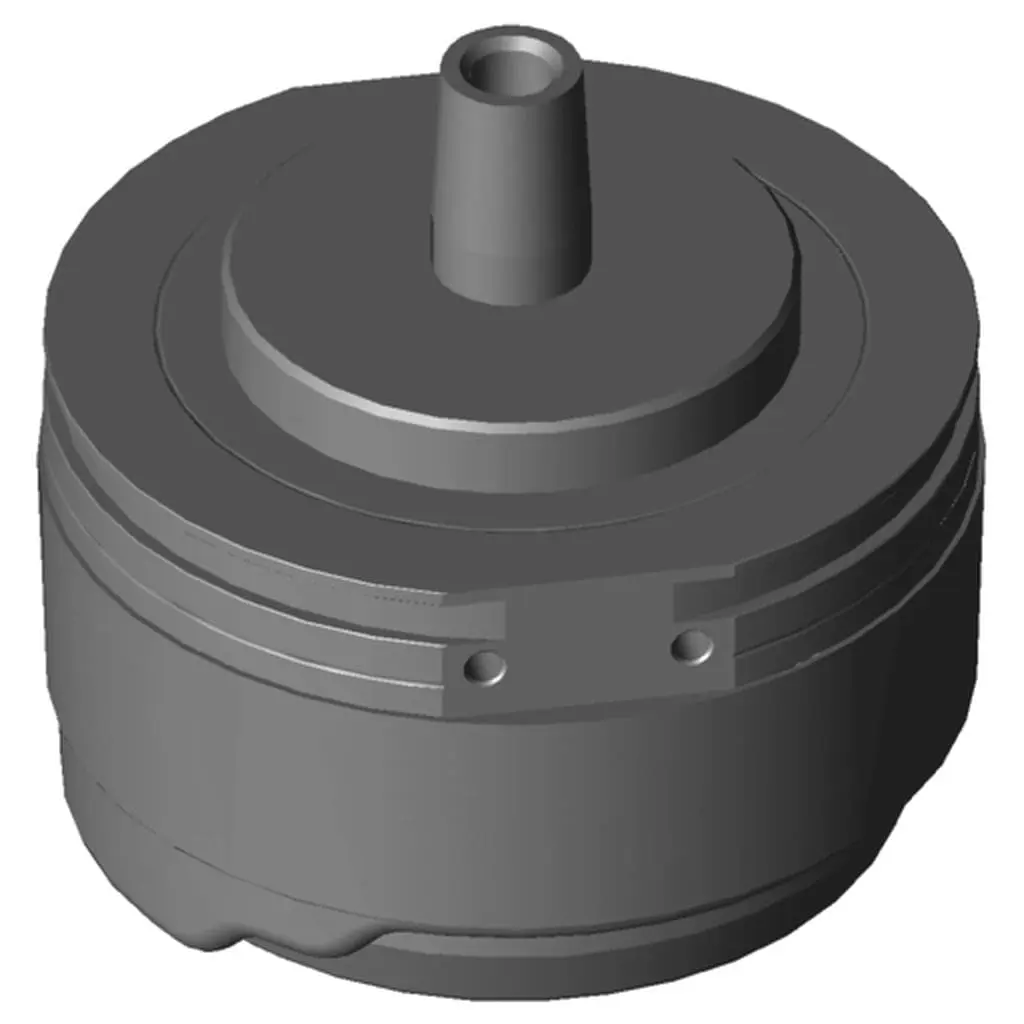

Rotary encoder with integral bearing
Differentiable revolutions: 4096
Positions per revolution: 8192
Data interface: EnDat01
Output code: Binary
Line count: 2048
Output signal: 1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply: 3.6 V ... 14 V
Coupling version: without coupling
Shaft: Tapered shaft 1 to 10,functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+115 °C
Electrical connection: Plug connector, straight, double-row, 12-pin, with locking mechanism and walls
Pin configuration: D323746
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer plates and central screw
Please pay attention to the product documentation!
Kompatibel med:
Betalingsmuligheder
Producent
EQN 1325 2048 62S12-78 K 0.00 .. 65B.. 40 09 .. .. D EnDat01 37 01 ..
Rotary encoder with integral bearing
Differentiable revolutions: 4096
Positions per revolution: 8192
Data interface: EnDat01
Output code: Binary
Line count: 2048
Output signal: 1Vpp
Cutoff frequency (-3 dB): 400.00 kHz
Power supply: 3.6 V ... 14 V
Coupling version: without coupling
Shaft: Tapered shaft 1 to 10,functional diameter 9.25 mm, back-off thread M10 and M6
Degree of protection: IP40 (EN60529)
Operating temperature: -40/+115 °C
Electrical connection: Plug connector, straight, double-row, 12-pin, with locking mechanism and walls
Pin configuration: D323746
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer plates and central screw
Please pay attention to the product documentation!
Kompatibel med:
| Vægt | 311 g |
|---|---|
| Interface | HEIDENHAIN EnDat |
| Spænding |
