36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ekskl. moms.
3.330,00 DKK ekskl. moms.
Vælg variant
Levering
Levering bliver beregnet ved kassen

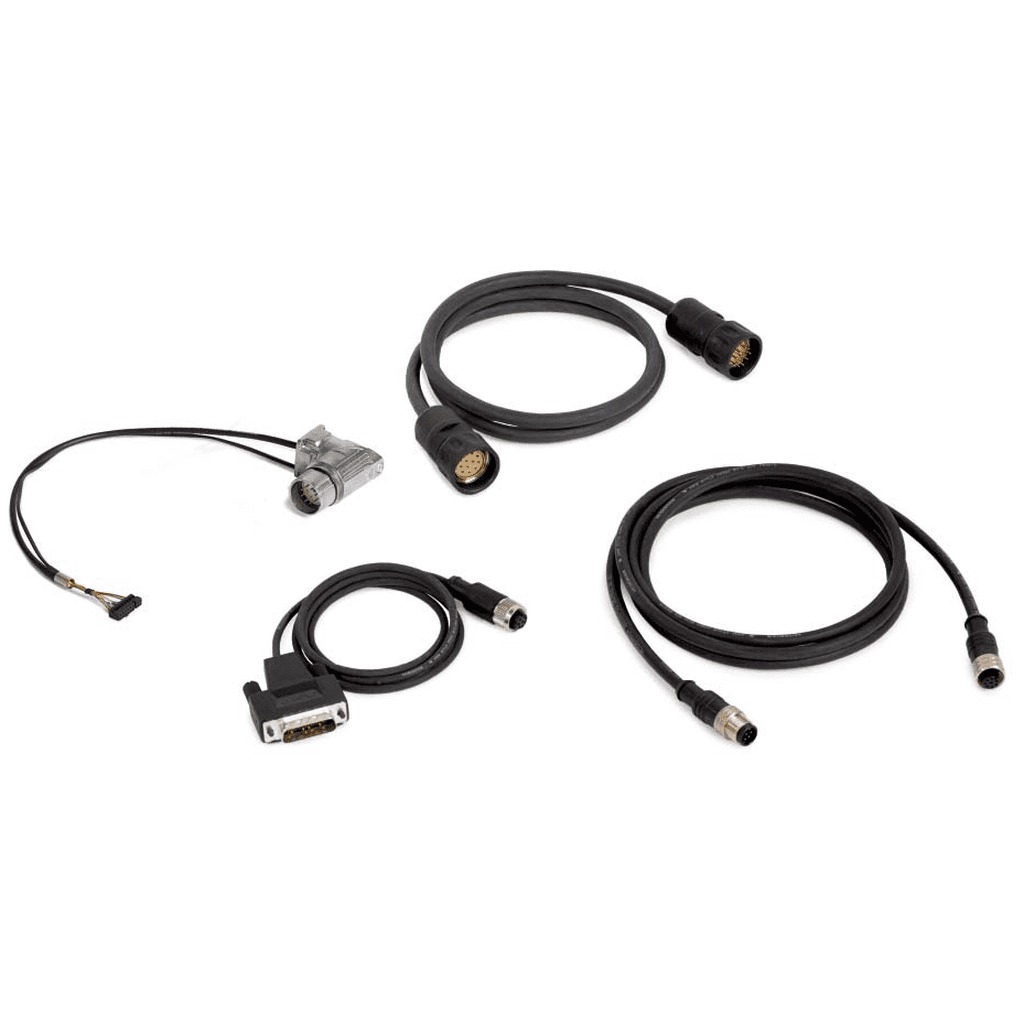

AGK 40 33 2.00 90B012 16S15 BK 0015 08.. .. 0.00 -40 /+105 01
Cable type 1: EPG Ø 4.5 mm
Cable design 1: 16xAWG30/7
Number of shields: 1
Cable length: 2.00 m
Electrical connection 2: Female housing, 2-row, 12-pin
Electrical connection 1: D-sub connector, 2-row, with locking screws, male, 15-pin
Pin configuration 1: D512236
Color: black
Cable bushing 1: Crimp sleeve Ø 6.1 mm on Ø 4.5 mm cable / L= 10 mm
Operating temperature range conditional: -40/+105 °C
Special characteristics PCB connector with output cable: strain relief and adapter connector (3 pieces JAE 15-pin, 3 pieces FCI 12-pin) included
Brand: HEIDENHAIN
Type of packaging: Individual packaging
Please refer also to the general electrical information in our brochures.
Betalingsmuligheder
Producent
AGK 40 33 2.00 90B012 16S15 BK 0015 08.. .. 0.00 -40 /+105 01
Cable type 1: EPG Ø 4.5 mm
Cable design 1: 16xAWG30/7
Number of shields: 1
Cable length: 2.00 m
Electrical connection 2: Female housing, 2-row, 12-pin
Electrical connection 1: D-sub connector, 2-row, with locking screws, male, 15-pin
Pin configuration 1: D512236
Color: black
Cable bushing 1: Crimp sleeve Ø 6.1 mm on Ø 4.5 mm cable / L= 10 mm
Operating temperature range conditional: -40/+105 °C
Special characteristics PCB connector with output cable: strain relief and adapter connector (3 pieces JAE 15-pin, 3 pieces FCI 12-pin) included
Brand: HEIDENHAIN
Type of packaging: Individual packaging
Please refer also to the general electrical information in our brochures.
| Vægt | 154 g |
|---|
Dokumentation
APK 03 10 8.00 02B017 16B015-5E BK A007 01 2 .. 0.00 Adapter cable for different connector connection Cable type: PUR Ø 8.0 mm Cable design: 4x2x0.16+4x0.5+4x0.16 Cable length: 8.00 m Encoder side: Connector M23, female, 17-pin Side of subsequent electronic: D-sub connector, 2-row, with locking screws, female, 15-pin Special characteristics, connecting cable: Pos.Enc.
1.099,00 DKK ekskl. moms.
APK 02 05 1.00 0TB014 03S017-7V BK .. 01 1 .. 0.00 Adapter cable for different connector connection Cable type: PUR Ø 6.0 mm Cable design: 6x2x0.19 mm² Cable length: 1.00 m Encoder side: Coupling M12, 14-pin Side of subsequent electronic: Coupling M23, male, 17-pin
Kompatibel med:
738,00 DKK ekskl. moms.
(Successor type for 6FX2002.....) Signal cable pre-assembled for incremental encoder sin/cos 1 Vpp 6FX2001-3 4x (2x0.34)+4x 0.5 C Connector full thread M23 MOTION-CONNECT 800PLUS trailable, UL/CSA, DESINA Dmax=9.3 mm Length (m)= type: 6FX8002-2CA11 length (m)= +0 +10 +5 +0
1.469,00 DKK ekskl. moms.
(Successor type for 6FX2002.....) Power cable pre-assembled 4x 1.5 C, connector Full-thread, size 1 MOTION-CONNECT 800PLUS trailable UL/CSA DESINA Dmax=9.5 mm, Length (m)= TYPE: 6FX8002-5CA01 LENGTH (M) = 0 + 20 + 5 + 0
Kompatibel med:
3.577,00 DKK ekskl. moms.
