36.122,00 DKK 45.995,00 DKKPrisinterval: 36.122,00 DKK til 45.995,00 DKK ekskl. moms.
45.995,00 DKK ekskl. moms.
Vælg variant
Levering
Levering bliver beregnet ved kassen

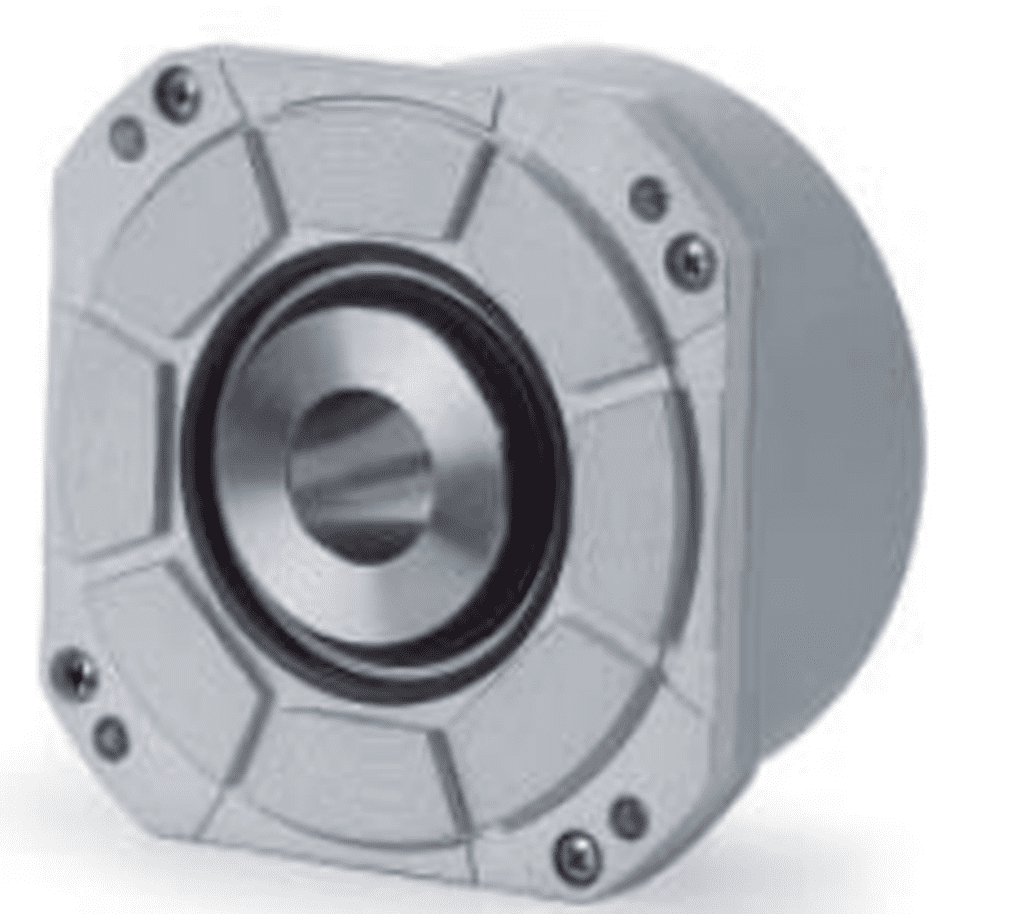

RCN 2310 16384 7KS12 EK T 5.0 .. 23C 53A 64 01 .. D EnDat22 37 01
Absolute angle encoder (singleturn) with integral
bearing and integrated stator coupling
System accuracy: ±5.0''
Data interface: EnDat22
Positions per revolution: 67108864
Output code: Binary
Power supply: 3.6 V ... 14 V
Shaft: Hollow through shaft foraxial clamping, diameter20 mm
Flange version: Rectangular flange with 85 mm centering collar, drainage channels, aluminum
Degree of protection: IP64 (EN60529)
Operating temperature: -20/+60 °C
Max. mechanical permissible
speed/rotational speed: 1500 1/min
Electrical connection: Flange socket Ultra-Lock, male, 12-pin
Pin configuration: D680849
Connecting direction: tangential
Special characteristics, rotational encoders: none
Betalingsmuligheder
Producent
RCN 2310 16384 7KS12 EK T 5.0 .. 23C 53A 64 01 .. D EnDat22 37 01
Absolute angle encoder (singleturn) with integral
bearing and integrated stator coupling
System accuracy: ±5.0''
Data interface: EnDat22
Positions per revolution: 67108864
Output code: Binary
Power supply: 3.6 V ... 14 V
Shaft: Hollow through shaft foraxial clamping, diameter20 mm
Flange version: Rectangular flange with 85 mm centering collar, drainage channels, aluminum
Degree of protection: IP64 (EN60529)
Operating temperature: -20/+60 °C
Max. mechanical permissible
speed/rotational speed: 1500 1/min
Electrical connection: Flange socket Ultra-Lock, male, 12-pin
Pin configuration: D680849
Connecting direction: tangential
Special characteristics, rotational encoders: none
| Vægt | 1205 g |
|---|---|
| Interface | HEIDENHAIN EnDat |
| Spænding | |
| IP Klassificering | |
| Aksel |
