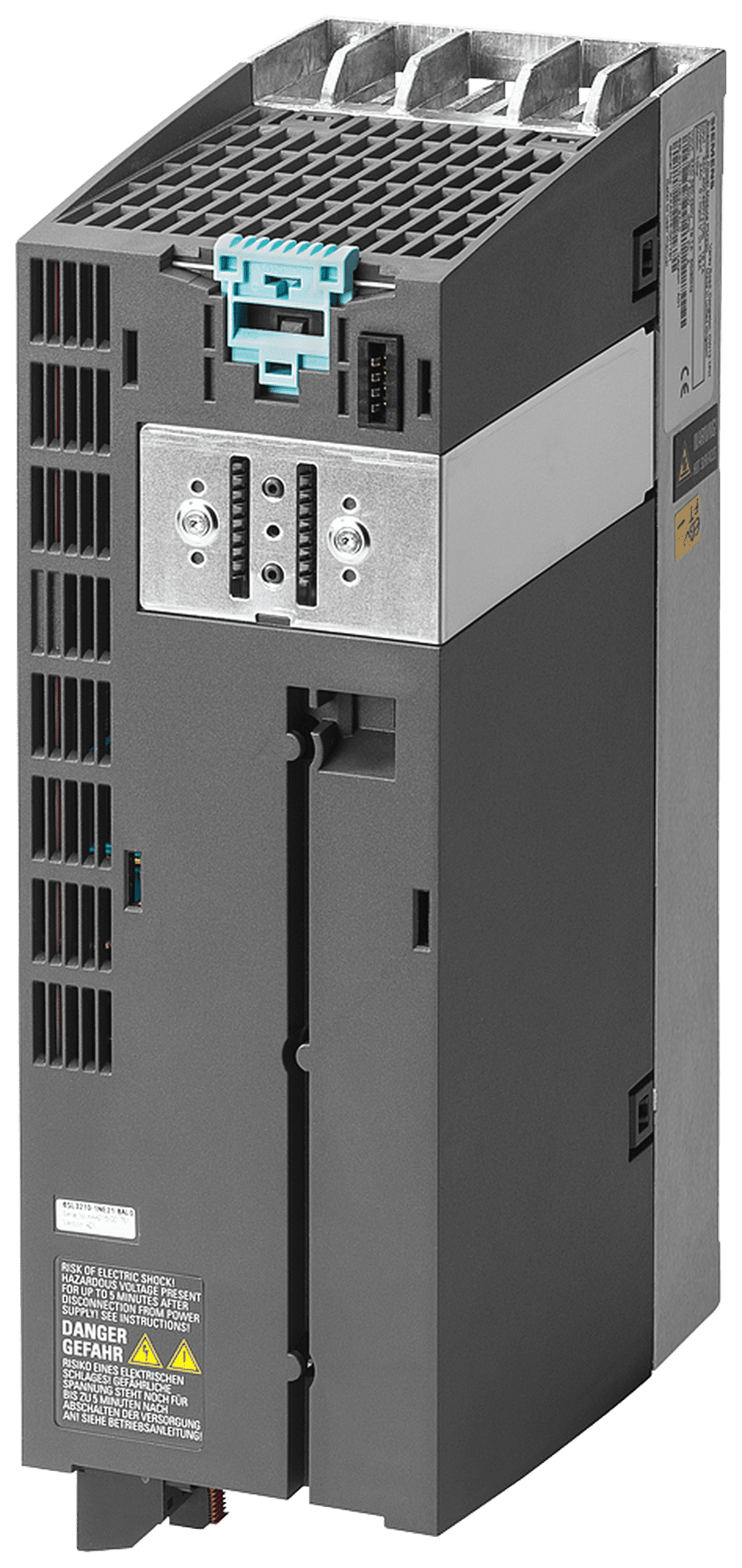

6SL3210-1PE12-3AL1 SINAMICS Effektmodul Siemens (1)

Siemens SINAMICS Effektmodul (6SL3210-1PE12-3AL1) - Billede 2

Siemens SINAMICS Effektmodul (6SL3210-1PE12-3AL1)

Modelnummer: 6SL3210-1PE12-3AL1

3.980,00 DKK ekskl. moms.

Vælg variant

Variant

Ryd

Levering

Levering bliver beregnet ved kassen

Beskrivelse

SINAMICS Power Module PM240-2 with integrated Class A filter with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 0.55kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 °C; power low overload: 0.75kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 °C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6

Betalingsmuligheder

Produktbeskrivelse

Producent

Siemens

Beskrivelse

Produktdetaljer

Yderligere information

Vægt	1550 g

Dokumentation
